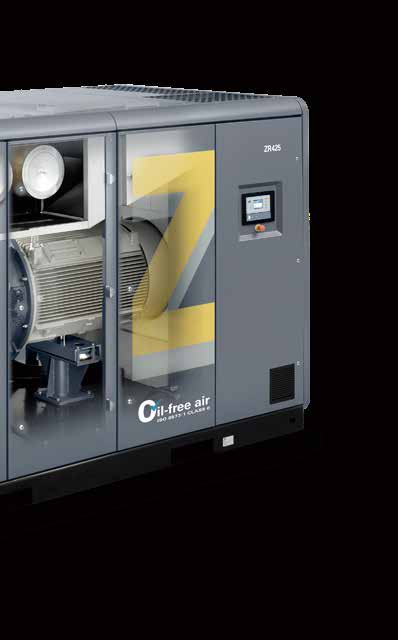

Variable Oil Free Screw Air Compressor Atlas ZT18VSD~ZT55VSD Air
Cooling 50~60Hz
ZR ZT
55-900 (VSD).pdf
Industry benchmark for energy saving, safety and reliability
Significantly reduce operating costs while continuously supplying
high-quality compressed air
The cost is to achieve superior productivity. Atlas 's Z-series
compressors
Focus on high efficiency and energy saving to ensure product safety
(only oil-free machines, excluding
contamination risk) and reliability. Guaranteed day after day, year
after year
Low maintenance costs, fewer service interventions and longer
intervals between overhauls.
Oil-free compressor head
• Unique Z-seal design ensures oil-free compressed air
• Atlas premium rotor coating ensures high efficiency and high
durability
• cooling jacket
Elektronikon ® cell controller
• Simultaneous control of compressor and dryer with integrated
control system
• Complete maintenance through proactive maintenance indication,
fault alarms and safety shutdown functions
body system performance status
• Multiple display languages available
• Dedicated to interface with ES system level control, integrated
into standard serial communication protocol
Add/unload valve
• No external air supply required
• Mechanical interlock between intake valve and vent valve
• Lower unloaded power
High efficiency motor + VSD
• IP55 motor protects against dust and chemicals
• Continuous operation under harsh ambient temperature conditions
• Direct energy savings of up to 35%* with variable frequency drive
(VSD) motors
• Adjustable flow range from 30% to 100%
Core Technology
Atlas is well versed in all compressed air working principles,
providing energy savings for a variety of applications
Technology. Fixed speed machines remain efficient at full load, but
When running, the variable frequency drive can significantly save
energy. The integrated adsorption dryer can
Provides high-quality dry air and utilizes the heat of compression
to regenerate the desiccant. These two core technologies can
Help customers save energy significantly.
Optimized utilization
Centralized control of multiple compressor systems reduces pressure
bands for low total energy costs. pressure
Shrinkage heat can be recovered and used in industrial processes
such as boiler feed water preheating, construction
heating, etc.
Oil-free compression
Atlas 's oil-free screw compressors feature a completely oil-free
compression chamber. High precision plus
There is no metal contact between the rotors of the workers,
without any lubrication, protecting the production process and the
final product
and environment free from pollution. It is a TUV (ISO 8573-1 CLASS
0) certified oil-free air compressor.
Integrated compressor
Internal piping, high performance design features, variable
frequency drives and precisely matched components ensure
overall reliability. Every machine is rigorously tested to ensure
it meets specifications and is safe and reliable
Doubtless. ZR/ZT oil-free compressors are truly plug-and-play
models.
Place the machine on level ground, connect the power cord and air
outlet, and press the start button.
Global Positioning - Local Services
Our after-sales service is designed to ensure high availability of
compressed air equipment at low operating costs
performance and reliability, so as to realize the improvement of
customer value. We set up service machines all over the world
To provide you with comprehensive and professional after-sales
service.
Application industry
Food and Beverage Industry
• Provides pure, oil-free air for a variety of applications (eg
fermentation, packaging, aeration, transportation, irrigation
mounting and capping, cleaning, instrument air).
• Certified to ISO 8573-1 CLASS 0 (2010), no compromise on the
purity of the final product
No contamination risk is ensured at any compromise.
Electric Industrial
• It is important to produce clean, dry, high-quality air with high
energy efficiency.
• Applications include removing microscopic debris from computer
chip surfaces and motherboards.
Petrochemical
• Reliable, certified oil-free compressed air is essential to keep
production running continuously.
• Capable of operating in harsh temperature and humidity
conditions, high performance and reliability are essential.
Pharmaceutical Industry
• Oil-free air is essential to prevent process contamination (eg
fermentation, aeration, tablet packs
clothing, packaging and bottling, automatic production lines).
• CLASS 0 can effectively reduce the risk of contamination and
maintain the high quality and professional brand reputation of the
product.
If you have any inquiry, please feel free to contact CEBE GROUP HK
CO.,LTD, the partner of ATLAS in Hong Kong, China.
