All In One PSA Nitrogen Generator Atlas NGP70 805kg Weight

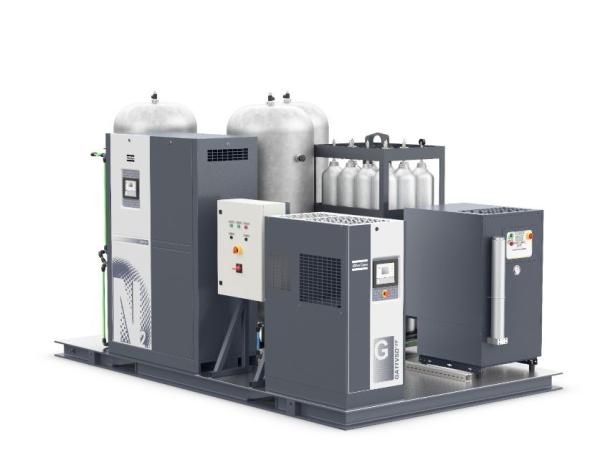

Atlas PSA Nitrogen Generator all in one NGP70

PSA nitrogen and oxygen generators
(NGP, NGP+, OGP)

Atlas ’s NGP, NGP+ and OGP nitrogen and oxygen generators are easy to install and use.They oﬀer the required purity with a high ﬂow capacity, making them suitable for a range of applications.

High ﬂow capacity
The wide product range and gas ﬂows exceeding 3,000 Nm³/h
(NGP/NGP+) make these generators ideal for a variety of demanding applications.

Ready to use
• Only requires a supply of dry compressed air.

• Plug-and-play.
• No specialist installation or commissioning.

• Fully automated and monitored including oxygen sensor as standard.
• Service-friendly.

Desired purity
• NGP/NGP+: nitrogen concentrations from 95% to 99.999%.
• OGP: oxygen concentrations from 90% to 95%.

Exceptional reliability
• Robust design.
• Continuous availability (24 hours a day, 7 days a week).
• Potential risk of production breakdown due to gas running out is eliminated.

Cost savings
• Low operating expenses.
• No additional costs such as order processing,reﬁlls and delivery charges.
• Limited maintenance costs.

Specifications

TYPE		Nitrogen purity FND (Free Nitrogen Delivery)									Dimensions (W x D x H)		Weight
		95%	97%	98%	99%	99.5%	99.90%	99.95%	99.99%	99.999%	mm	in	kg	lbs
NGP 70	FND scfm	93.9	71.3	60.4	51.2	41.3	26.8	19.1	13.6	8.3	798 x 840 x 2022	31.4 x 33.1 x 79.6	805	1775
NGP 70	FND Nm³/h	159.7	121.2	102.7	87.0	70.2	45.6	32.5	23.1	14.2	798 x 840 x 2022	31.4 x 33.1 x 79.6	805	1775

FND: Free Nitrogen Delivery Reference conditions
Compressed air effective inlet pressure: 8 bar(g)/116 psi(g).
Nitrogen outlet pressure: 6.5 bar(g)/94 psi(g).
Ambient air temperature: 20°C/68°F.
Pressure dewpoint inlet air: 3°C/37°F.
Pressure dewpoint nitrogen: -50°C/-58°F.
Minimum refrigerant dryer required to precondition inlet air.
Typical nitrogen quality 1.2.1 according to ISO 8573-1:2010.

Operating limits
Minimum ambient temperature: 5°C/41°F.
Maximum ambient temperature: 50°C/122°F.
Maximum compressed inlet air pressure 13 bar(g)/189 psi(g).

NGMs performance
is based on 20°C/7 bar at membrane (1000Mbar) + /-5%.
