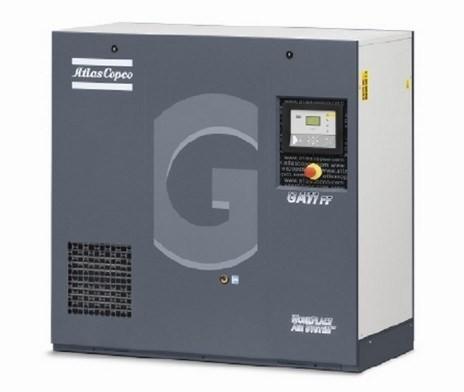

GA 45 50Hz Air Compressor
High reliability and smart energy
GA 30+ & GA 37/45
Why dry your compressed air?
Untreated compressed air contains moisture, aerosols and dirt
particles that can damage your air system and contaminate your end
product, resulting in risk of corrosion and compressed air system
leaks. Maintenance costs can far exceed air treatment costs. An air
dryer is therefore essential to protect your systems and processes.
The GA, GA+ and GA VSD compressors have an integrated dryer option
to secure your peace of mind.
Integrated dry air
• Optimized sizing for the compressor, avoiding excessive energy
consumption. • Fit for your application.
• Controlled and monitored by the Elektronikon®.
• Space-saving all-in-one solution with low installation costs.
SPECIFICATIONS
COMPRESSOR TYPE | Pressure variant | Max. working pressure WorkPlace | Capacity FAD* | Installed motor power | Noise level** | Weight WorkPlace | Weight WorkPlace Full Feature |
| bar(e) | psig | l/s | m³/min | cfm | kW | hp | dB(A) | kg | lbs | kg | lbs |
| GA 45 | 7.5 | 7.5 | 109 | 138 | 8.3 | 290 | 45 | 60 | 70 | 692 | 1522 | 900 | 1980 |
| 8.5 | 8.5 | 123 | 128 | 7.7 | 268 | 45 | 60 | 70 | 692 | 1522 | 900 | 1980 |
| 10.5 | 10.5 | 145 | 119 | 7.2 | 251 | 45 | 60 | 70 | 692 | 1522 | 900 | 1980 |
| 13 | 13 | 189 | 105 | 6.3 | 221 | 45 | 60 | 70 | 692 | 1522 | 900 | 1980 |
Lowest lifecycle costs and peace of mind
• No extra installation costs.
• Saving floor space.
• Use of energy-efficient, environmentally friendly refrigerant R410A
reduces operating costs and stands for zero ozone depletion.
• Heat exchanger cross-flow technology with low pressure drop,saving
energy and costs.
• Zero waste of compressed air thanks to no-loss condensate drain.
• Advanced control functions ensure dry air under all circumstances
and prevent freezing at low load.
• Pressure dew point of 3°C (100% relative humidity at 20°C).
1. Maintenance-free drive system
• 100% maintenance-free; totally enclosed and protected against
dirt and dust.
• Suitable for harsh environments.
• High-efficiency drive arrangement; no coupling or slippage losses.
• Standard up to 46°C/115°F and for high ambient version
55°C/131°F.
2. IE3 Premium Efficiency electrical motors
• IP55, insulation Class F, B rise.
• Non-drive side bearing greased for life.
• Oil lubricated drive side bearings.
3. Robust spin-on oil filter
• High-efficiency, removing 300% smaller particles than a
conventional filter.
• Integrated bypass valve with the oil filter.
4. Separate oversized oil cooler and aftercooler
• Low element outlet temperatures, ensuring long oil lifetime:•
Removal of nearly 100% condensate by mechanical separator.
• No consumables.
• Eliminates possibility of thermal shocks in coolers.
5. Advanced control & monitoring via Elektronikon®
• Integrated smart algorithms reduce system pressure and energy
consumption.
• Monitoring features include warning indications,maintenance
scheduling and online visualization of machine’s condition.
6. Heavy-duty air intake filter
• Protects the compressor components by removing99.9% of dirt
particles down to 3 microns.
• Differential inlet pressure for proactive maintenance while
minimizing pressure drop.
7. Electronic no-loss water drain(optional)
• Ensures constant removal of condensate.
• Manual integrated bypass for effective condensate removal in case
of power failure.
• Integrated with compressor’s Elektronikon® with warning/alarm
features.
8. Radial fan
• Low noise level.
• High flows.
• Compact design.
9. Integrated highly efficient R410A dryer
• Excellence in air quality.
• 50% reduction in energy consumption compared to traditional
dryers.
• Zero ozone depletion.
• Incorporates optional UD+ filter according to Class 1.4.2.
