30HP 22KW PERMANENT MAGNET ROTARY SCREW AIR COMPRESSOR WITH VSD INVERTER

Specifications

Product Name: 30Hp 22Kw Permanent Magnet Rotary Screw Air Compressor with VSD Inverter
Working Pressure: 8 - 12.5bar (116 - 181psi)
Air Delivery: 1.1 - 3.8 m3/min
Motor Power: 22kw/30hp
Type of Driving: Direct Driven
Type of Cooling: Air Cooling/Water Cooling
Dimension: 1200*850*1280mm
Weight: 665kg
Output pipe Diameter: 1"

The servo variable frequency compressor is a competitive product among the high-grade machines, the quality of air end of servo variable frequency compressor is excellent. The advanced molded lines ensure the minimum specific power. It is designed in the FEM strength analysis, to ensure the stability and reliability of each part, and to realize long term operation with no faults, low noise and long life.

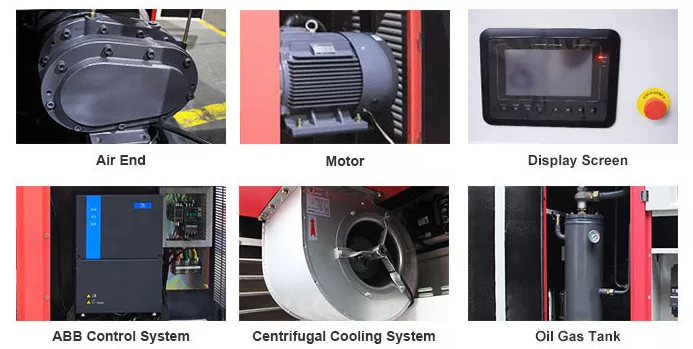

Advantages

1. Rotor:

   Rotors are asymmetric in profile, backed up by ball bearings and roller bearings. Operates at a low speed, thereby low in abrasion and maintenance expenses, air end is long service life. Helical gears can produce axial force to kill some acting force, which reduces the load of the bearing of air end.

2. Control panel:

   Intelligent microcomputer-based control technology can monitor and control in all aspects the complete machine following your instructions, remote control realizes unattended operation, and the user-friendly human-machine interface displays instructions and parameters in written form also, it can function to self diagnose faults, give warning and automatically regulate the capacity.

3. Oil filter:

   Rotary filters are applied to completely remove the impurities in the lubricating oil, easy to replace and free of oil impregnate.

4. Cooler:

   It is designed for low temperature difference to increase heat exchange area, and ideal to be applied to high-humidity operating environment.

5. Excellent quality of motors:

   Compared to normal motors, Servo motors have smaller dimensions and more excellent energy saving.It will exert incomparable energy saving effect than normal inductive motor when installed with the special frequency convectors.

6. The host machine of compressor is of high efficiency and long life:

   The quality of host machine of permanent magnet synchronizing variable frequency compressor is excellent. The advanced molded lines ensure the minimum specific power.It is designed in the FEM strength analysis.to ensure the stability and reliable of each part,and to realize long term operation with no faults,low noise and long life.

CEBE GROUP HK Co., Ltd. is a professional company engaged in air compressors system, PSA, dryers, filters and its spare parts research, development, production, sales and service. With more than 8 years of air compressor industry sales and service experience, we cumulative sales and service air compressor related products around 8~10 thousand units.

We worked with Insergroll Grand, Chicago Phenmatic, Beacon Medaes for long time, meanwhile, have our own factory for the air compressor, dryers, PSA. We specialize in providing global users with internationally renowned brand oil screw air compressor, oil-free screw air compressor, oil-free compressor, centrifugal compressors and spare parts, PSA oxygen, Nitrogen generator, dryers, filter, etc… and technical support!

Welcome OEM and ODM orders! We focus on exporting, like Asia, Europe, South America, North America, Africa and other countries and regions. We have office in HK, Shenzhen city, Dongguan city, own factory located in Dongguan city. We adhere to the quality-oriented, service first business principle, focus on strictly control quality from all aspects of design, material selection, assembly, testing and service, etc.
