Atlas Copco Air Compressor G Series G2-90 The Perfect Solution For Industrial Compressed Air Needs

Ask Lasest Price
Brand Name :	Atlas
Model Number :	G2-90
Price :	be negotiabled
Payment Terms :	T/T, Western Union, L/C, D/P, D/A
Supply Ability :	100pcs per month
Delivery Time :	7-30days
Certification :	CE,ISO

Add to Cart

Product Details
Company Profile

Atlas Copco Air Compressor G Series G2-90 The Perfect Solution For Industrial Compressed Air Needs

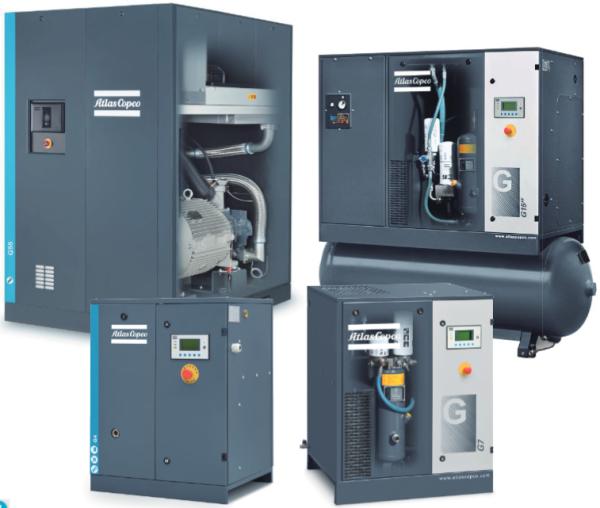

Oil-injected rotary screw compressors
G 2-90(2-90 kW / 3-120 hp)

Atlas Copco worldwide
Atlas Copco based in Stockholm Sweden and founded in 1873, is an industrial group with a world-leading position in compressors,construction and mining equipment,power tools and assembly systems. Atlas Copco provides optimized compressed air solutions through sustainable productivity.

New G series: screw compressors built to last
Atlas Copco compressors have always set the standard for reliability and performance in the compressed air industry with the new G 2-90. Atlas Copco brings the power and durability of an industrial screw compressor to any type of small or medium sized industry.

Advantage:

1) Built-in reliability
• Rugged screw compressor technology for a 100% continuous duty cycle.
• Up to 46°C ambient temperature conditions thanks to the selection of robust components.
• Electro pneumatically operated inlet valve for stable running and a long life time.

2) Easy installation

• Wireless concept.

• Multiple variants (floor and tank mounted. with or without integrated dryer) for full flexibility.

• Minimum footprint and cooling air discharge from the top allows placement against the wall or in a corner.

3) Simple & quick maintenance

• Patented cooler for easy cleaning and maintenance.

• Grouped service points accessible through the removable panel.

• Spin-on oil separator and filter.

4) Mature drive system

• Inheriting mature rotor design,high reliability.

• High-quality V-belt rotation, high effiency,long life(applicable to G 2-22).
• Gear-driven drive train on G 30-90 for unequaled reliability and limited maintenance.

• The maximum operating environment temperature of the standard model is 46℃

5) High tech oil vessel
• Protection from oil contamination: extremely low oil carry-over thanks to the vertical design of the oil vessel.
• Extremely low losses of compressed air during load/unload cycle thanks to minimized oil vessel size.

Technical specifications

G2-90(50HZ)

compressor type	Maximum pressure		Air Capacity			Motor power		Noise	Weight(without gas tank)		Weight(with gas tank)		Outlet
	Maximum pressure		Air Capacity			Motor power		Noise	Standard	Full Performance	Standard	Full Performance
	Bar(e)	psl	l/s	m³/min	cfm	Kw	hp	dB(A)	P(kg)	FF(kg)	P(kg)	FF(kg)
G2 230V/1PH	8.5	123	4.3	0.26	9	2.2	3	58	122	150	167	195	G1/2"
G2 230V/1PH	10.5	145	3.7	0.22	8	2.2	3	58	122	150	167	195	G1/2"
G3 230V/1PH	8.5	123	6.4	0.38	13	3	4	59	124	152	169	196	G1/2"
G3 230V/1PH	10.5	145	5.5	0.33	12	3	4	59	124	152	169	196	G1/2"
G2	8.5	123	4.5	0.27	10	2.2	3	58	122	150	167	195	G1/2"
G2	10.5	145	4.3	0.26	9	2.2	3	58	122	150	167	195	G1/2"
G3	8.5	123	7	0.42	15	3	4	59	124	152	169	196	G1/2"
G3	10.5	145	5.8	0.35	12	3	4	59	124	152	169	196	G1/2"
G4	8.5	123	9.7	0.58	21	4	5	60	125	153	170	198	G1/2"
G4	10.5	145	8.8	0.53	19	4	5	60	125	153	170	198	G1/2"
G5	8.5	123	13	0.8	28	55	7	63	127	155	172	200	G1/2"
G5	10.5	145	12	0.74	26	5.5	7	63	127	155	172	200	G1/2"
G7	7.5	109	20	1.22	43	75	10	66	221	/	392	435	G3/4"
	8.5	123	19	1.14	40	75	10	66	221	/	392	435
	10	145	17	1.01	36	75	10	66	221	/	392	435
	13	189	13	0.79	28	75	10	66	221	/	392	435
G11	7.5	109	29	1.75	62	11	15	67	238	/	409	452	G3/4"
	8.5	123	27	1.50	56	11	15	67	238	/	409	452
	10	145	24	1.46	52	11	15	67	238	/	409	452
	13	189	20	1.20	42	11	15	67	238	/	409	452
G15	7.5	109	44	2.62	93	15	20	71	378	/	616	701	G1"
	8.5	123	40	2.40	85	15	20	71	378	/	616	701
	10	152	35	2.10	75	15	20	71	378	/	616	701
	13	189	31	1.83	65	15	20	71	378	/	616	701
G18	7.5	109	50	2.97	105	185	25	71	405	/	644	729	G1"
	8.5	123	47	2.82	96	185	25	71	406	/	644	729
	10	152	43	2.5	91	185	25	71	406	/	644	729
	13	189	37	2.19	78	185	25	71	406	/	644	729
G22	7.5	109	63	3.75	128	22	30	72	421	/	659	744	G1"
	8.5	123	58	3.5	124	22	30	72	421	/	659	744
	10	152	52	3.11	110	22	30	72	421	/	659	744
	13	189	45	2.72	95	22	30	72	421	/	659	744
G30	7.5	109	90	5.4	191	30	40	72	674	/	/	/	G1 1/2"
	8.5	123	86	5.18	183	30	40	72	674	/	/	/
	10	145	80	4.79	169	30	40	72	674	/	/	/
G37	7.5	109	112	6.71	237	37	50	72	754	/	/	/	G1 1/2"
	8.5	123	106	6.38	225	37	50	72	754	/	/	/
	10	145	96	5.76	203	37	50	72	754	/	/	/
G45	7.5	109	133	7.96	281	45	60	73	768	/	/	/	G1 1/2"
	8.5	123	127	7.6	268	45	60	73	768	/	/	/
	10	145	117	7.02	248	45	60	73	768	/	/	/
G55	7.5	109	185	11.10	392	55	75	71	1470	/	/	/	G2 1/2"
	8.5	123	175	10.47	370	55	75	71	1470	/	/	/
	10.5	152	157	9.40	332	55	75	71	1470	/	/	/
G75	7.5	109	228	13.67	483	75	100	73	1560	/	/	/	G2 1/2"
	8.5	123	216	12.94	457	75	100	73	1560	/	/	/
	10.5	152	199	11.92	421	75	100	73	1560	/	/	/
G90	7.5	109	282	16.90	597	90	120	74	1700	/	/	/	G2 1/2"
	8.5	123	274	16.43	580	90	120	74	1700	/	/	/
	10.5	152	247	14.82	573	90	120	74	1700	/	/	/

Click to open our catalog:G2-90 wuxi leaflet EN 2935081343.pdf
