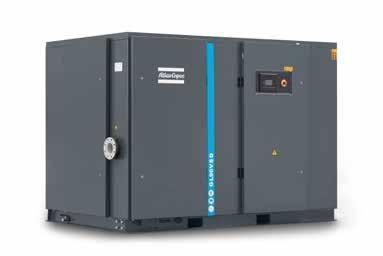

Oil-injected screw air compressor

GL 55-90 VSD

The Smart Choice for Highly Reliable, Energy Efficient Applications

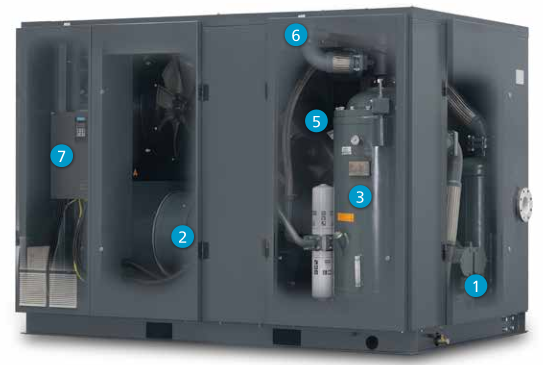

5.Heavy Duty Filter

- Removes 99.9% of coarse dust particles and protects compressor components.

- Extra large dust capacity for longer maintenance intervals.

6.Enlarged design of oil cooler and aftercooler

- Longer oil life due to lower rotor outlet temperature

- Elimination of thermal shock in the heat exchanger

- Elimination of thermal shocks in the heat exchanger Reduced system pressure drop and lower energy consumption

7.Integrated frequency converter

- Fast adjustment response, speed range 30-100%

- Integrated frequency converter design, compact structure, easy maintenance

8.Elektronikon® touch screen controller

- Built-in intelligent algorithms to optimise system pressure and reduce overall energy consumption

- Remote control, alarm outputs, maintenance scheduling and network diagnostics.

- Built-in Smartlink remote monitoring to keep track of the system status.

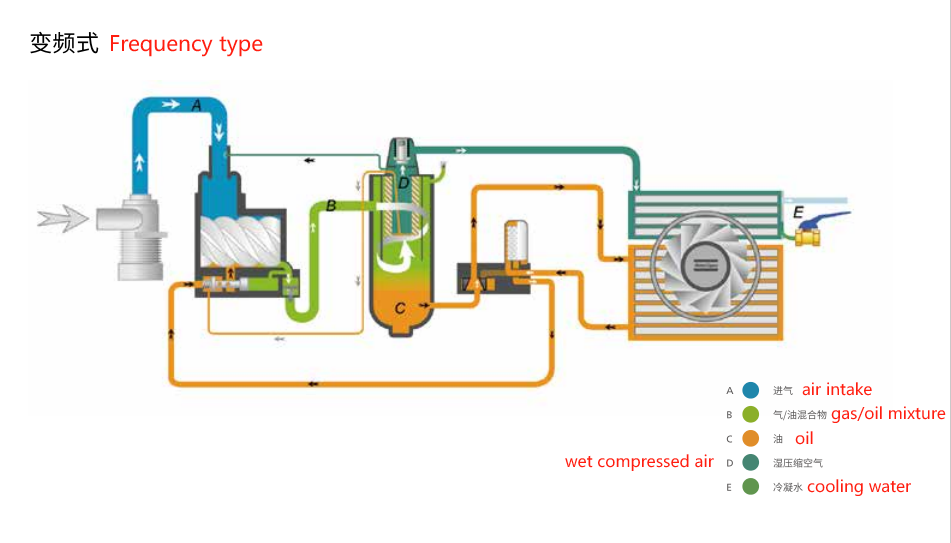

Flow chart

Variable speed drives: Reduced energy consumption

Compressor energy consumption accounts for more than 80 per cent of total life cycle costs, and the cost of producing compressed air is about 40 per cent of a plant's entire electricity bill (based on experience in the air compressor industry).To reduce energy consumption, Atlas Copco has developed variable speed VSD air compressors, a technology that not only achieves significant energy savings, but also protects the environment for future generations. Atlas Copco is able to offer a full range of VSD air compressors.

Why Atlas Copco variable speed technology?

- The air supply can be matched in real time to drastic changes in demand, with no additional energy wastage

- Elektronikon® controllers smoothly adjust motor speed in response to pressure fluctuations.

- No wasteful idling and emptying

- The compressor can be started/stopped at full pressure with no unloading waste.

- No peak starting currents, no impact on the grid

- No peak starting current, no impact on the grid Reduced system operating pressure, reduced system leakage

Technical parameters

Type	Maximum working pressure		FAD*			Motor power		Noise	Weight	Outlet
	bar(e)	psig	I/s	m³/min	cfm	kW	hp	dB(A)	kg
GL55VSD	3.5	52	81-218	4.9-13.1	171-457	55	75	77	2600	DN100
	5.5	80	82-216	4.9-12.9	172-457	55	75	77	2600	DN100
GL75V5D	3.5	52	115-305	6.9-18.3	242-646	75	100	77	2900	DN100
	5.5	80	117-299	7.1-179	247-633	75	100	77	2900	DN100
GL90VSD	3.5	52	147-385	8.8-23.1	310-815	90	120	77	3040	DN100
	5.5	80	150-378	9.0-22.7	315-801	90	120	77	3040	DN100

Dimension:

L*W*H:2845*1750*1930mm
