ATLAS SF+ OIL-FREE AIR COMPRESSOR

SF 8+-22+

Click to open the catalog:SF1-22_antwerp_leaflet_EN_2935084448.pdf

Reliable and compact, with innovative technology, high energy efficiency and uncompromisingly high quality to meet your needs.

SF8+-22+: Flexible Modular Design

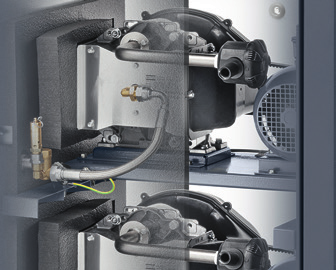

The SF8+-22+ scroll air compressor features an efficient and flexible modular system design, integrating 2 to 4 compression modules into a single chassis and using the Elektronikon® controller continuously monitors the operating status of each compressor rotor and automatically starts/stops the rotors according to the air demand, ensuring that the compressed air output meets your needs. In addition, ideal compressed air quality and a user-friendly design guarantee a superior production process.

1.Air inlet filter

High efficiency paper cartridge air inlet filter eliminating dust and particles down to 1µm.

2.IP55 Class F

Totally enclosed & air-cooled IP55 Class F motors.

3.High efficiency scroll element

Air-cooled scroll compressor elements with 8 and 10 bar variants, offering proven durability and reliability in operation, in addition to superior efficiency.

4.Refrigerant dryer

Compact & optimized integrated refrigerant dryer ensuring the delivery of dry air,preventing rust and corrosion in the installed compressed air network.

5.Silent canopy

Thanks to the low-noise scroll element, optimized super-silent fan and sound-insulated canopy, best in class noise levels possible are achieved.

6.Elektronikon® Mk5 Graphic

While running the VFT algorithm, the Elektronikon® Mk5 Graphic matches the required air demand, eliminating unload power consumption.

7.Optimized cooler & piping

The air cooler is finetuned for improved performance, while the use of aluminum & stainless steel pipes improve reliability over lifetime and assure the high quality of compressed air.

8.Smart design

Outstanding user-friendly design, with safety in operation & ease of serviceability in mind.

- SF Duplex

• Duplex set-up with two cubicles,one/two main modules and one/two modules as back-up.

• Elektronikon® regulates each set of compressor modules via an integrated central control system.

• Enclosed in sound-insulated bodywork.

TECHNICAL SPECIFICATIONS

Type	Maximum working pressure		FAD			Motor power		Noise	Weight
	bar(e)	psig	I/s	m³/min	cfm	kW	hp	dB(A)	kg	lbs
SF8+-22+(50/60Hz)
SF8+	8	116	13.4	0.80	28.4	8	10	63	387	853
	10	145	11.3	0.68	23.9	8	10	63	387	853
SF11+	8	116	21.1	1.27	44.7	11	15	63	442	974
	10	145	15.0	0.90	31.8	11	15	63	442	974
SF15+	8	116	27.2	1.63	57.6	15	20	63	583	1285
	10	145	22.6	1.36	47.8	15	20	63	583	1285
SF17+	8	116	31.5	1.89	66.7	17	22	64	645	1422
	10	145	23.5	1.41	49.7	17	22	64	645	1422
SF22+	8	116	41.1	2.47	87.0	22	30	65	745	1642
	10	145	29.7	1.78	62.9	22	30	65	745	1642
SFD 11+-22+(50/60Hz)
SFD 11+	8	116	9.8x2	0.59x2	20.8x2	11	15	63	625	1380
	10	145	7.6x2	0.46x2	16.1x2	11	15	63	625	1380
SFD 15+	8	116	13.4x2	0.80x2	28.4x2	15	20	64	755	1665
	10	145	11.4x2	0.68x2	24.2x2	15	20	64	755	1665
SFD 22+	8	116	19.2x2	1.21x2	42.8x2	22	30	65	840	1855
	10	145	15.0x2	0.90x2	31.8x2	22	30	65	840	1855
SF SKID/TWIN
Twin version - double tank installation
SF8T	8	116	13.2	0.79	81.1	7.4	10	73	375	827
	10	145	11.2	0.67	68.8	7.4	10	73	375	827

DIMENSIONS

	L x W x H		Outlet
	mm	inch
SF8+-22+
SF8+-11+	1628x750x1230	64.1x29.5x48.4	G1"F
SF15+-22+	1628x750x1844	64.1x29.5x48.4	G1"F
SFD 11+-22+
SFD 11+-22+	1628x750x1844	64.1x29.5x48.4	G1"F(x2)
