Atlas Copco Oil-Free Screw Air Compressor AQ15-55 VSD

Ask Lasest Price
Brand Name :	Atlas
Model Number :	AQ 15-55 VSD
Certification :	CE,ISO
Price :	be negotiabled
Payment Terms :	T/T, Western Union, L/C, D/P, D/A
Supply Ability :	100pcs per month
Delivery Time :	7-30days

Add to Cart

Product Details
Company Profile

Atlas Copco Oil-Free Screw Air Compressor AQ15-55 VSD

OIL-FREE WATER-INJECTED SCREW COMPRESSORS

AQ 15-55 VSD/AQ 30-55 (15-55 kW / 20-75 hp)

Zero risk of contamination

Whether your activities are in pharmaceutical production,food & beverage, critical electronics or in a similarly exacting industry, air quality is paramount for your end product and production process. Atlas Copco’s AQ oil-free compressors eliminate the risks of oil contamination.

Reduced energy costs

With energy amounting to over 70% of a compressor’s lifecycle costs (LCC), its importance is clear. The most efficient compressed air solution optimizes the pressure, volume and air treatment equipment for each production process. Atlas Copco’s AQ compressors provide you with the ultimate all-in-one package to reduce your electricity bill to a minimum.

Renowned expertise

Drawing on vast experience and continuous technological innovations, Atlas Copco has been leading the industry in oil-free compressed air technology for over sixty years.With the protection of your application in mind, Atlas Copco has designed its AQ range to offer the superb 100% oil-free quality air you are in need of.

ENGINEERED TO MEET YOUR NEEDS

At Atlas Copco we aim to provide you with compressors that fulfill and even exceed your expectations and demands. Built as the result of decades of experience in oil-free design and manufacturing, the AQ range of oil-free screw compressors gives you all of this experience and knowledge in a class leading package.

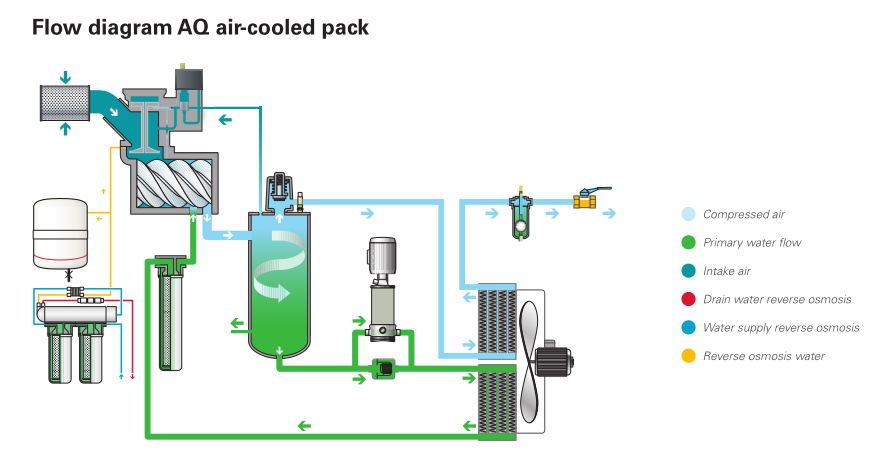

1.Water-injected screw element

• Highly energy-efficient thanks to low temperatures.

• Water-lubricated, grease-free bearings.

• In-house design and manufacturing.

• Working pressure up to 13 bar.

2.Water filter

• Ensuring a constant supply of clean water.

• The filtration capability equals 10 micron throughout the filter’s lifetime.

3.Heavy-duty air filter

• Protects the compressor components by removing 99.9% of dirt particles down to 3 microns.

• Differential inlet pressure for proactive maintenance while minimizing pressure drop.

4.Separator vessel

• Stainless steel water separator vessel for separation via centrifugal and gravity forces.

• Three sensors included for precise water regulation.

5.Induction motor

• IP55 induction motor, flange-mounted for perfect alignment.

• Combined with direct driven arrangement for superior energy efficiency.

6.Reverse osmosis system

• The built-in reverse osmosis system provides a reliable supply of high quality water, ensuring autonomy and continuous operation.

7.Air-cooled fan and water-cooler

• Air and water-cooled variants are available throughout the range.

• Small footprint and installation thanks to built-in heat exchangers.

• Water-cooled units provide a continuous air temperature at the dryer inlet of less than 55°C (131°F).

8.Integrated highly efficient dryer

• Excellence in air quality.

• 50% reduction in energy consumption compared to traditional dryers.

• Zero ozone depletion.

9.Elektronikon® Graphic

• Advanced Elektronikon® Graphic control and monitoring system,designed for integration in a (remote) process control system.

10.Sound insulated canopy

• No separate compressor room is required as the sound insulated canopy allows for installation in most working environments.

11.Innovative Neos frequency converters

• IP5x protection class

• Robust aluminium housing for trouble-free operation in harsh conditions

• Fewer parts: compact and easy to use

PROVEN TECHNOLOGY

At the heart of the new AQ range is a unique water-injected screw element working highly efficient near isothermal compression. The polymer ceramic rotors with their optimized rotor profile are supported by water-lubricated bearings, ensuring that no oil whatsoever can contaminate the compression element,thereby producing pure oil-free air.

Rotors

A highly efficient compression process is achieved thanks to high quality polymer mould ceramic rotors with optimum profiling. The combination

of corrosion-free, high efficiency raw material and water lubrication results in a longer lifespan.

Element housing

Strength and durability are ensured as a result of the aluminium bronze element housing without risk of corrosion within the element.

Element bearings

The use of hydrodynamic bearings ensure long life as no physical contact is made within the bearing itself, it simply glides on a film of water removing the need for any oil or grease lubrication.

Superior water-injected screw element

• Increased free air delivery.

• Low specific energy consumption.

• Near isothermal compression process.

• Pressure ratings of 7, 10 and 13 bar.

The highly effective cooling capabilities of water combined with precision engineering ensure the supreme energy efficiency of the AQ compressors.

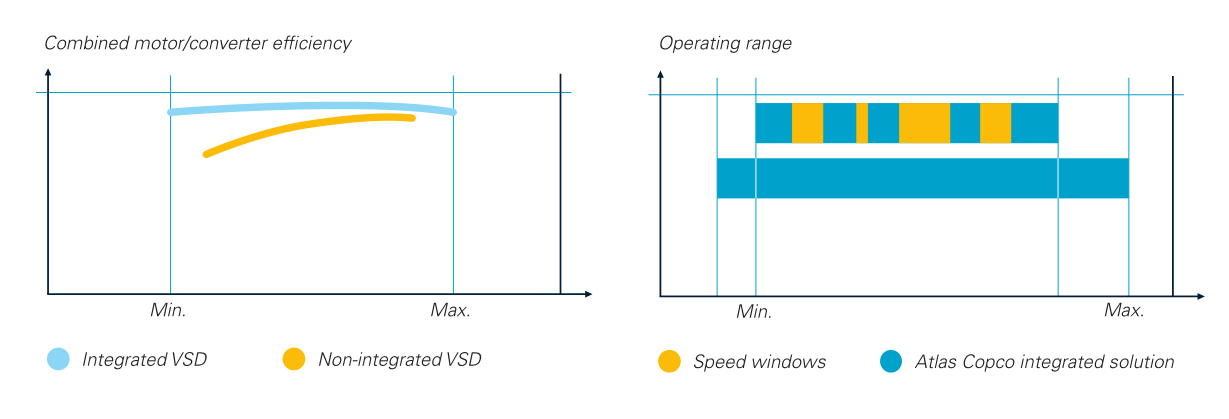

Why Atlas Copco Variable Speed Drive technology?

• On average 35% energy savings during fluctuations in production demand with an extensive turndown range.

• Integrated Elektronikon Graphic controller controls the motor speed and high efficiency frequency inverter.

• No wasted idling times or blow-off losses in normal operation.

• Compressor can start/stop under full system pressure without the need to unload with special VSD motor.

• Eliminates peak current penalty during start-up.

• Minimizes system leakage due to a lower system pressure.

• EMC Compliance to directives (2004/108/EG).

TECHNICAL SPECIFICATIONS

Type	Working pressure		FAD			Motor Power		Noise	Weight(kg/lbs)
Type	bar(g)	psig	I/s	m³/min	cfm	kW	hp	dB(A)	P	FF
Water-cooled
AQ15VSD A	4	58	22-50	1.29-3.01	46-106	15	20	67	650/1433	700/1543
	7	102	22-46	1.34-2.78	47-98
	10	145	23-38	1.35-2.29	48-81
	11	160	23-35	1.32-32.10	47-74
	12.75	185	22-30	1.30-1.81	46-64
AQ18VSDA	4	58	22-62	1.29-3.73	46-132	18	25	69	650/1433	700/1543
	7	102	22-54	1.34-3.22	47-114
	10	145	23-45	1.35-2.68	48-95
	11	160	22-42	1.32-2.52	47-89
	12.75	185	22-37	1.30-2.19	46-77
AQ22VSDA	4	58	22-66	1.31-3.95	46-139	22	30	70	740/1631	800/1764
	7	102	23-66	1.35-3.93	48-139
	10	145	23-54	1.35-3.25	48-115
	11	160	22-51	1.32-3.06	47-108
	12.75	185	22-44	1.31-2.66	46-94
AQ30VSDA	4	58	22-83	1.31-5.00	46-177	30	40	72	740/1631	810/1786
	7	102	23-83	1.35-4.96	48-175
	10	145	23-77	1.35-4.60	48-163
	11	160	22-74	1.32-4.44	47-157
	12.75	185	22-64	1.31-3.85	46-136
AQ37VSDA	4	58	42-108	2.50-6.45	88-228	37	50	69	1300/2866	1410/3108
	7	102	39-105	2.35-6.31	83-223
	10	145	51-91	3.07-5.45	108-193
	11	160	55-84	3.27-5.03	116-178
	12.75	185	61-76	3.63-4.58	128-162
AQ45VSDA	4	58	44-130	2.62-7.79	93-275	45	60	72	1300/2866	1410/3108
	7	102	40-127	2.42-7.64	86-270
	10	145	53-105	3.20-6.28	113-222
	11	160	57-101	3.42-6.08	121-215
	12.75	185	66-89	3.97-5.33	140-188
AQ55VSDA	4	58	44-155	2.62-9.31	93-329	55	75	75	1300/2866	1410/3108
	7	102	40-152	2.42-9.10	86-321
	10	145	53-135	3.20-8.08	113-285
	11	160	57-127	3.42-7.62	121-269
	12.75	185	66-115	3.97-6.92	140-245

Type	Working pressure		FAD			Motor Power		Noise	Weight(kg/lbs)
Type	bar(g)	psig	I/s	m³/min	cfm	kW	hp	dB(A)	P	FF
Water-cooled
AQ15VSD W	4	58	22-50	1.29-3.02	46-107	15	20	64	542/1195	592/1305
	7	102	22-46	1.34-2.78	47-98
	10	145	23-38	1.35-2.29	48-81
	11	160	23-36	1.38-2.16	49-76
	12.75	185	22-30	1.30-1.81	46-64
AQ18VSD W	4	58	22-62	1.29-3.74	46-132	18	25	66	542/1195	592/1305
	7	102	22-54	1.34-3.22	47-114
	10	145	23-45	1.35-2.68	48-95
	11	160	18-35	1.08-2.10	38-74
	12.75	185	22-37	1.30-2.19	46-77
AQ22VSD W	4	58	21-67	1.28-4.03	45-142	22	30	67	632/1393	692/1526
	7	102	23-65	1.35-3.95	48-139
	10	145	23-55	1.36-3.31	48-117
	11	160	22-52	1.32-3.12	47-110
	12.75	185	22-46	1.32-2.77	47-98
AQ30VSD W	4	58	21-82	1.28-4.91	45-173	30	40	69	632/1393	702/1548
	7	102	23-83	1.35-4.99	48-176
	10	145	23-78	1.36-4.66	48-165
	11	160	23-77	1.38-4.62	49-163
	12.75	185	22-66	1.32-3.98	47-140
AQ37VSD W	4	58	45-113	2.69-6.77	95-239	37	50	66	1186/2614	1296/2857
	7	102	42-110	2.51-6.61	89-233
	10	145	54-93	3.23-5.56	114-196
	11	160	60-87	3.59-524	127-185
	12.75	185	69-78	4.12-4.70	146-166
AQ45VSD W	4	58	45-135	2.69-8.09	95-286	45	60	69	1186/2514	1296/2857
	7	102	42-132	2.51-7.94	89-281
	10	145	54-108	3.23-6.46	114-228
	11	160	59-104	3.55-6.22	126-220
	12.75	185	69-93	4.12-5.56	146-196
AQ55VSD W	4	58	45-160	2.69-9.60	95-339	55	75	72	1186/2614	1296/2857
	7	102	42-158	2.51-9.50	89-335
	10	145	54-140	3.23-8.42	114-298
	11	160	59-133	3.56-8.00	126-283
	12.75	185	69-120	4.12-7.22	146-255

Dimensions

Type	Air-cooled			Water-cooled
Type	L(mm)	W(mm)	H(mm)	L(mm)	W(mm)	H(mm)
AQ 15-30VSD	1966	974	1500	1966	974	1500
AQ 37-55VSD	2435	965	1839	2435	965	1839

Click this look our catalog:AQ15-55VSD-Oil Free.pdf
